2011 Suzuki New Satria F150

Monday, June 13, 2011

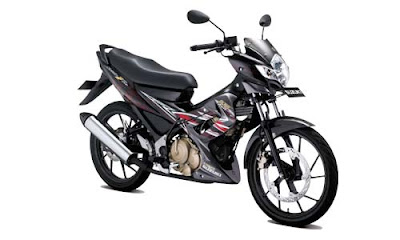

2011 Suzuki New Satria F150 Photo Gallery

Satria F150:
Hyper Underbone
Suzuki Carry moge technology, Twin Cam or DOHC engine, 4-valve, 4-stroke, 150cc, equipped air-cooled/sacs (Suzuki advanced cooling system) supported 6-speed transmission is responsive. Various updates to make it appear more vivid.

2011 Suzuki New Satria F150 - Specifications :

Overall Length 1945 mm
Overall Width 652 mm
Overall Height 941 mm
Distance Between Wheels As 1280 mm
Distance to Soil Machine 95 mm
Vehicle Weight 95 kg
Seat Height 764 mm

Type 4-Tak, DOHC, Air Berpendingan, SACS, 4-Valve
Number of Cylinders 1 (one)
Cylinder diameter 62 mm
Step Piston 48.8 mm
Cylinder Capacity 147.3 cc
Compression Ratio 10.2: 1
Ps/9.500 7.11 rpm Maximum Power
Maximum torque Kg.m 1:27. 8500 rpm
Carburetors Mikuni BS 26-187
Air Filter Paper Type
Starter System Electric and Feet
Immersion Oil Lubrication System

Manual clutch plate wet type compound
Transmission 6 Acceleration
Directions 1 Go Gear down, 5 Go up
Drive Chains DID 428 DS, 122 eyes

Suspension Front Telescopic, spiral spring, bearing oil
Rear Suspension Arm swing, spiral spring, bearing oil
Steering angle 45 ° (Right and Left)
Turn Radius m 2
DepanRem Rear Brake Disc / Discs
Tire Size Front 70/90-17 38S
80/90-17 44S Rear Tire Size

CDI Ignition System
NGK Spark plug CR8E / DENSO U24ESR-N
Accu 12 V (2.5 Ah) / 10 HR
4.9 L Fuel Tank
With the replacement of oil filter 1100 ml
1000 ml Engine Oil Tank
